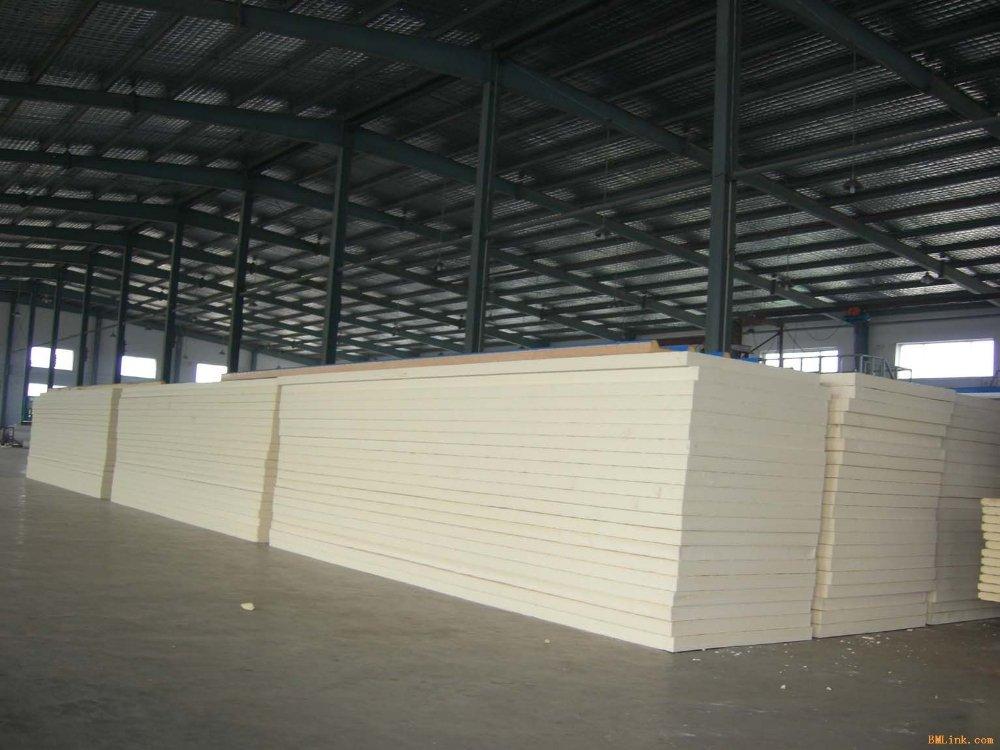

Rigid Foam Polyurethane PU Blend Polyol for discontinuous sandwich Panels.
Introduction : This product is one of the raw material of Rigid Foam Polyurethane. The Foam is widely applied to different sized discontinuous sandwich panel as thermal insulation construction materials. Polynol – 2023 ,Polynol – 2123, Polynol – 5023-DI & Polynol – 5023-IL are respectively used for ordinary discontinuous Panels.
Characteristics :Actual value varied depends on the processing conditions.
Item / Grade
OH value (mgKOH/gm)
Viscosity (CPS) @ 25°C
Specific Gravity @ 25°C
FRD (kg/m3)
MD (kg/m3)
Ratio (P/I)
Application
Polynol - 2023
300 - 350
250 - 350
1.1 - 1.15
22 - 26
38 - 40
100/120 - 125
PANEL
Polynol - 2123
300 - 350
250 - 350
1.1 - 1.15
20 - 24
38 - 40
100/120 - 125
PANEL
Polynol - 5023-DI
300 - 350
250 - 350
1.1 - 1.15
24 - 26
38 - 40
100/120 - 125
PANEL
Polynol - 5023-IL
300 - 350
250 - 350
1.1 - 1.15
24 - 28
40 - 44
100/120 - 125
PANEL
CONTINUOUS SANDWICH PANEL
(A) Rigid Foam Polyurethane PU blend Polyols for PUR & PIR continuous sandwich panel's
Introduction :This product is widely used to produce PUR &PIR Rigid Foam using 141B as blowing agent .It has insulation performance applies to Cold Storage, Tanks, External Wall, Large pipes etc. Polynol 8023-CP (PUR), Polynol 8024-CP (PIR).
Characteristics :Actual value varied depends on the processing conditions.
Item / Grade
OH value (mgKOH/gm)
Viscosity (CPS) @ 25°C
Specific Gravity @ 25°C
Ratio (P/I)
FRD (kg/m3)
MD (kg/m3)
Application
POLYNOL 8023 CP (PUR)
300 – 350
250 – 350
1.1 – 1.15
100/136 – 140
36 – 38
40 – 44
CONTINUOUS PUR PANEL
POLYNOL 8024 CP (PIR)
300 – 350
250 – 350
1.1 – 1.15
100/136 – 140
36 – 38
40 – 44
CONTINUOUS PIR PANEL
(B) Rigid foam Polyurethane Blended Polyol for PUR & PIR Cyclopentane continuous sandwich panel`s.
Introduction :This product is widely used to produce PUR & PIR Rigid Foam, using cyclopentane as blowing agent. It has outstanding insulation and flame resistance performance, applies to building external wall, cold storage, tanks, large pipes etc. Polynol 8025-CP (PUR) & Polynol 8026-CP (PIR).
Characteristics ::- Actual value varied depends on the processing conditions.
Item / Grade
OH value (mgKOH/gm)
Viscosity (CPS) @ 25°C
Ratio (P/I)
FRD (kg/m3)
MD (kg/m3)
Application
8025-CP (PUR)
380 -420
2000 - 2500
100/140 – 145
34 - 36
38 – 44
CONTINUOUS PUR PANEL
8026-CP (PIR)
380 -420
2000 - 2500
100/140 – 145
36 - 38
40 – 44
CONTINUOUS PIR PANEL
PIPELINE

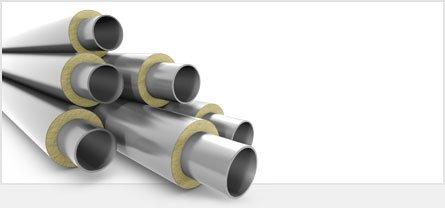

Rigid Foam Polyurethane PU Blend Polyol For Pipeline.
Introduction : This product is widely used to produce PIR Rigid Foam using 141B as blowing agent for pipelines. Polynol 5060-PIR.
Characteristics : Actual value varied depends on the processing conditions.
Item /Grade
OH value (mgKOH/gm)
Viscosity (CPS) @ 25°C
Specific Gravity @ 25°C
Ratio (P/I)
FRD (kg/m3)
MD (kg/m3)
5060-PIR
300 – 350
250 – 350
1.1 – 1.15
100/ 120 – 125
24 – 26
38 – 40
SPRAY INSULATION
Rigid Foam Polyurethane PU Blend Polyols For Spray Insulation.
Introduction : This product is a kind of blend Polyols which react with Isocyanate use HCFC – 141 b as blowing agent to produce rigid foam Polyurethane the foam can be directly sprayed to all kinds of thermal insulation construction project , like cold warehouse , roof , internal & external wall etc. Polynol 5031-S, Polynol 5033-S
Characteristics : Actual value varied depends on the processing conditions.
Item/Grade
OH value (mgKOH/gm)
Viscosity (CPS) @ 25°C
Ratio (P/I)
FRD (kg/m3)
MD (kg/m3)
5031 – S
300 – 350
200 – 250
100/110 – 120
40 – 42
40 – 42
5033 – S
300 – 350
200 – 250
100/110 – 120
35 – 40
35 – 40
WOOD IMITATION

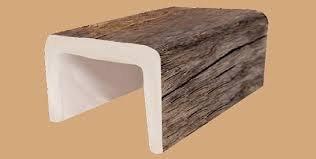

Rigid Foam Polyurethane PU Blend Polyols For Wood Imitation.
Introduction : This product is a new type of carving synthetic material with excellent repetition moulding property and high mechanical strength and hardness. It could be planed, nailed, drilled and carved to mould certain shape as well as lifelike wood texture and other design. Polynol - 1042
Characteristics : Actual value varied depends on the processing condition.
Item/Grade
OH value (mgKOH/gm)
Viscosity (CPS) @ 25°C
Specific Gravity @ 25°C
Ratio (P/I)
FRD (kg/m3)
MD (kg/m3)
Polynol - 1042
380 – 400
850 – 1150
1.02 – 1.11
100/110 – 120
200 – 300
300 – 400
APPLIANCES
Rigid Foam Polyurethane PU Blend Polyols For Appliances.
Introduction : This series of products are raw materials of rigid foam Polyurethane which applies to refrigerators, freezers, and other insulation appliances products . Polynol 3510 – R Use 141 B as blowing agent and Polynol 3511 – R use cyclopentane.
Characteristics : Actual value varied depends on the processing conditions.
Item/Grade
Usage
OH value (mgKOH/gm)
Viscosity (CPS) @ 25°C
FRD (kg/m3)
MD (kg/m3)
Ratio (P/I)
Application
3510 – R
Refrigerator (HCFC – 141 B)
300 – 350
250 – 350
20 – 24
33 – 35
100/110 – 120
Refrigeration
3511 – R
Refrigerator(Cyclopentane)
380 – 400
2000 – 3000
22 – 28
38 – 40
100/140 – 145
Refrigeration
GEYSER & SOLAR WATERHEATER
Rigid Foam Polyurethane PU Blend Polyols For Geyser & Solar Waterheater.
Introduction : This product is a kind of yellow to brown viscous liquid, made up by special Polyol & Additives . It react with MDI (isocyanate) to produce Rigid Foam. Polyurethane which particularly applies of geyser and Solar water heater as thermal insulation. Polynol – 2024.
Characteristics : Actual value varied depends on the processing conditions.
